# scaffold 项目之操作日志、访问日志、错误日志

# 简介

在一个系统中，我们需要知道哪些用户做了哪些操作，或者哪些用户访问了项目，还有系统运行的状态这些记录，方便我们定位排查问题或者溯源。

在本项目中提供了 2 大类 4 种系统日志：

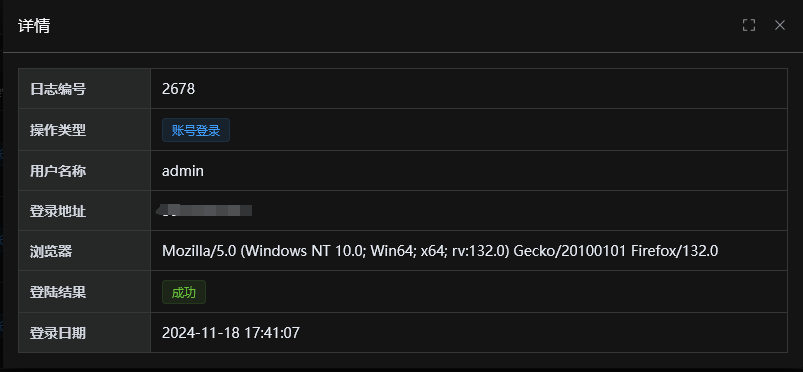

审计日志：用户操作日志、登陆日志
API 日志：访问日志、错误日志

# 操作日志

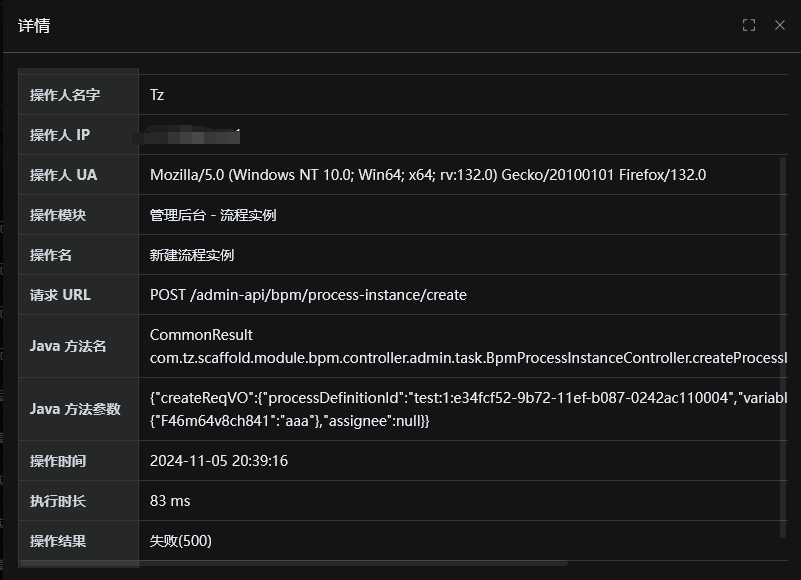

操作日志记录：【什么人】在【什么数据】对【什么对象】做了【什么事情】，可以在【系统管理 -> 审计日志 -> 操作日志】菜单中看到对应的列表，详情如图显示：

可以看到具体操作了什么，结果如何。
后续可以考虑记录更详细的情况，比如 记录变更前后 的情况

# 实现方式：

主要是通过注解和切面的方式实现的。

创建记录日志的注解

	package com.tz.scaffold.framework.operatelog.core.annotations;

	import com.tz.scaffold.framework.operatelog.core.enums.OperateTypeEnum;
	import io.swagger.v3.oas.annotations.Operation;
	import io.swagger.v3.oas.annotations.tags.Tag;

	import java.lang.annotation.ElementType;
	import java.lang.annotation.Retention;
	import java.lang.annotation.RetentionPolicy;
	import java.lang.annotation.Target;

	/**
	* <p> Project: scaffold - OperateLog </p>
	*
	* 操作日志注解
	* @author Tz
	* @date 2024/01/09 23:45
	* @version 1.0.0
	* @since 1.0.0
	*/
	@Target({ElementType.METHOD})
	@Retention(RetentionPolicy.RUNTIME)
	public @interface OperateLog {

	// ========== 模块字段 ==========

	/**
	* 操作模块
	*
	* 为空时，会尝试读取 {@link Tag#name ()} 属性
	*/
	String module() default "";
	/**
	* 操作名
	*
	* 为空时，会尝试读取 {@link Operation#summary ()} 属性
	*/
	String name() default "";
	/**
	* 操作分类
	*
	* 实际并不是数组，因为枚举不能设置 null 作为默认值
	*/
	OperateTypeEnum[] type() default {};

	// ========== 开关字段 ==========

	/**
	* 是否记录操作日志
	*/
	boolean enable() default true;
	/**
	* 是否记录方法参数
	*/
	boolean logArgs() default true;
	/**
	* 是否记录方法结果的数据
	*/
	boolean logResultData() default true;

	}

创建切面类来记录日志

	package com.tz.scaffold.framework.operatelog.core.aop;


	/**
	* <p> Project: scaffold - OperateLogAspect </p>
	*
	* 拦截使用 @OperateLog 注解，如果满足条件，则生成操作日志。
	* <p>
	* 满足如下任一条件，则会进行记录：
	* <li>
	* 1. 使用 @ApiOperation + 非 @GetMapping
	* <li>
	* 2. 使用 @OperateLog 注解
	* <p>
	* 但是，如果声明 @OperateLog 注解时，将 enable 属性设置为 false 时，强制不记录。
	* @author Tz
	* @date 2024/01/09 23:45
	* @version 1.0.0
	* @since 1.0.0
	*/
	@Aspect
	@Slf4j
	public class OperateLogAspect {

	/**
	* 用于记录操作内容的上下文
	*
	* @see OperateLog#getContent ()
	*/
	private static final ThreadLocal<String> CONTENT = new ThreadLocal<>();
	/**
	* 用于记录拓展字段的上下文
	*
	* @see OperateLog#getExts ()
	*/
	private static final ThreadLocal<Map<String, Object>> EXTS = new ThreadLocal<>();

	@Resource
	private OperateLogFrameworkService operateLogFrameworkService;

	@Around("@annotation(operation)")
	public Object around(ProceedingJoinPoint joinPoint, Operation operation) throws Throwable {
	// 可能也添加了 @ApiOperation 注解
	com.tz.scaffold.framework.operatelog.core.annotations.OperateLog operateLog = getMethodAnnotation(joinPoint,
	com.tz.scaffold.framework.operatelog.core.annotations.OperateLog.class);
	return around0(joinPoint, operateLog, operation);
	}

	@Around("!@annotation(io.swagger.v3.oas.annotations.Operation) && @annotation(operateLog)")
	// 兼容处理，只添加 @OperateLog 注解的情况
	public Object around(ProceedingJoinPoint joinPoint,
	com.tz.scaffold.framework.operatelog.core.annotations.OperateLog operateLog) throws Throwable {
	return around0(joinPoint, operateLog, null);
	}

	private Object around0(ProceedingJoinPoint joinPoint,
	com.tz.scaffold.framework.operatelog.core.annotations.OperateLog operateLog,
	Operation operation) throws Throwable {
	// 目前，只有管理员，才记录操作日志！所以非管理员，直接调用，不进行记录
	Integer userType = WebFrameworkUtils.getLoginUserType();
	if (!Objects.equals(userType, UserTypeEnum.ADMIN.getValue())) {
	return joinPoint.proceed();
	}

	// 记录开始时间
	LocalDateTime startTime = LocalDateTime.now();
	try {
	// 执行原有方法
	Object result = joinPoint.proceed();
	// 记录正常执行时的操作日志
	this.log(joinPoint, operateLog, operation, startTime, result, null);
	return result;
	} catch (Throwable exception) {
	this.log(joinPoint, operateLog, operation, startTime, null, exception);
	throw exception;
	} finally {
	clearThreadLocal();
	}
	}

	public static void setContent(String content) {
	CONTENT.set(content);
	}

	public static void addExt(String key, Object value) {
	if (EXTS.get() == null) {
	EXTS.set(new HashMap<>());
	}
	EXTS.get().put(key, value);
	}

	private static void clearThreadLocal() {
	CONTENT.remove();
	EXTS.remove();
	}

	private void log(ProceedingJoinPoint joinPoint,
	com.tz.scaffold.framework.operatelog.core.annotations.OperateLog operateLog,
	Operation operation,
	LocalDateTime startTime, Object result, Throwable exception) {
	try {
	// 判断不记录的情况
	if (!isLogEnable(joinPoint, operateLog)) {
	return;
	}
	// 真正记录操作日志
	this.log0(joinPoint, operateLog, operation, startTime, result, exception);
	} catch (Throwable ex) {
	log.error("[log][记录操作日志时，发生异常，其中参数是 joinPoint({}) operateLog({}) apiOperation({}) result({}) exception({}) ]",
	joinPoint, operateLog, operation, result, exception, ex);
	}
	}

	private void log0(ProceedingJoinPoint joinPoint,
	com.tz.scaffold.framework.operatelog.core.annotations.OperateLog operateLog,
	Operation operation,
	LocalDateTime startTime, Object result, Throwable exception) {
	OperateLog operateLogObj = new OperateLog();
	// 补全通用字段
	operateLogObj.setTraceId(TracerUtils.getTraceId());
	operateLogObj.setStartTime(startTime);
	// 补充用户信息
	fillUserFields(operateLogObj);
	// 补全模块信息
	fillModuleFields(operateLogObj, joinPoint, operateLog, operation);
	// 补全请求信息
	fillRequestFields(operateLogObj);
	// 补全方法信息
	fillMethodFields(operateLogObj, joinPoint, operateLog, startTime, result, exception);

	// 异步记录日志
	operateLogFrameworkService.createOperateLog(operateLogObj);
	}

	private static void fillUserFields(OperateLog operateLogObj) {
	operateLogObj.setUserId(WebFrameworkUtils.getLoginUserId());
	operateLogObj.setUserType(WebFrameworkUtils.getLoginUserType());
	}

	private static void fillModuleFields(OperateLog operateLogObj,
	ProceedingJoinPoint joinPoint,
	com.tz.scaffold.framework.operatelog.core.annotations.OperateLog operateLog,
	Operation operation) {
	//module 属性
	if (operateLog != null) {
	operateLogObj.setModule(operateLog.module());
	}
	if (StrUtil.isEmpty(operateLogObj.getModule())) {
	Tag tag = getClassAnnotation(joinPoint, Tag.class);
	if (tag != null) {
	// 优先读取 @Tag 的 name 属性
	if (StrUtil.isNotEmpty(tag.name())) {
	operateLogObj.setModule(tag.name());
	}
	// 没有的话，读取 @API 的 description 属性
	if (StrUtil.isEmpty(operateLogObj.getModule()) && ArrayUtil.isNotEmpty(tag.description())) {
	operateLogObj.setModule(tag.description());
	}
	}
	}
	//name 属性
	if (operateLog != null) {
	operateLogObj.setName(operateLog.name());
	}
	if (StrUtil.isEmpty(operateLogObj.getName()) && operation != null) {
	operateLogObj.setName(operation.summary());
	}
	//type 属性
	if (operateLog != null && ArrayUtil.isNotEmpty(operateLog.type())) {
	operateLogObj.setType(operateLog.type()[0].getType());
	}
	if (operateLogObj.getType() == null) {
	RequestMethod requestMethod = obtainFirstMatchRequestMethod(obtainRequestMethod(joinPoint));
	OperateTypeEnum operateLogType = convertOperateLogType(requestMethod);
	operateLogObj.setType(operateLogType != null ? operateLogType.getType() : null);
	}
	//content 和 exts 属性
	operateLogObj.setContent(CONTENT.get());
	operateLogObj.setExts(EXTS.get());
	}

	private static void fillRequestFields(OperateLog operateLogObj) {
	// 获得 Request 对象
	HttpServletRequest request = ServletUtils.getRequest();
	if (request == null) {
	return;
	}
	// 补全请求信息
	operateLogObj.setRequestMethod(request.getMethod());
	operateLogObj.setRequestUrl(request.getRequestURI());
	operateLogObj.setUserIp(ServletUtils.getClientIP(request));
	operateLogObj.setUserAgent(ServletUtils.getUserAgent(request));
	}

	private static void fillMethodFields(OperateLog operateLogObj,
	ProceedingJoinPoint joinPoint,
	com.tz.scaffold.framework.operatelog.core.annotations.OperateLog operateLog,
	LocalDateTime startTime, Object result, Throwable exception) {
	MethodSignature methodSignature = (MethodSignature) joinPoint.getSignature();
	operateLogObj.setJavaMethod(methodSignature.toString());
	if (operateLog == null \|\| operateLog.logArgs()) {
	operateLogObj.setJavaMethodArgs(obtainMethodArgs(joinPoint));
	}
	if (operateLog == null \|\| operateLog.logResultData()) {
	operateLogObj.setResultData(obtainResultData(result));
	}
	operateLogObj.setDuration((int) (LocalDateTimeUtil.between(startTime, LocalDateTime.now()).toMillis()));
	// （正常）处理 resultCode 和 resultMsg 字段
	if (result instanceof CommonResult) {
	CommonResult<?> commonResult = (CommonResult<?>) result;
	operateLogObj.setResultCode(commonResult.getCode());
	operateLogObj.setResultMsg(commonResult.getMsg());
	} else {
	operateLogObj.setResultCode(SUCCESS.getCode());
	}
	// （异常）处理 resultCode 和 resultMsg 字段
	if (exception != null) {
	operateLogObj.setResultCode(INTERNAL_SERVER_ERROR.getCode());
	operateLogObj.setResultMsg(ExceptionUtil.getRootCauseMessage(exception));
	}
	}

	private static boolean isLogEnable(ProceedingJoinPoint joinPoint,
	com.tz.scaffold.framework.operatelog.core.annotations.OperateLog operateLog) {
	// 有 @OperateLog 注解的情况下
	if (operateLog != null) {
	return operateLog.enable();
	}
	// 没有 @ApiOperation 注解的情况下，只记录 POST、PUT、DELETE 的情况
	return obtainFirstLogRequestMethod(obtainRequestMethod(joinPoint)) != null;
	}

	private static RequestMethod obtainFirstLogRequestMethod(RequestMethod[] requestMethods) {
	if (ArrayUtil.isEmpty(requestMethods)) {
	return null;
	}
	return Arrays.stream(requestMethods).filter(requestMethod ->
	requestMethod == RequestMethod.POST
	\|\| requestMethod == RequestMethod.PUT
	\|\| requestMethod == RequestMethod.DELETE)
	.findFirst().orElse(null);
	}

	private static RequestMethod obtainFirstMatchRequestMethod(RequestMethod[] requestMethods) {
	if (ArrayUtil.isEmpty(requestMethods)) {
	return null;
	}
	// 优先，匹配最优的 POST、PUT、DELETE
	RequestMethod result = obtainFirstLogRequestMethod(requestMethods);
	if (result != null) {
	return result;
	}
	// 然后，匹配次优的 GET
	result = Arrays.stream(requestMethods).filter(requestMethod -> requestMethod == RequestMethod.GET)
	.findFirst().orElse(null);
	if (result != null) {
	return result;
	}
	// 兜底，获得第一个
	return requestMethods[0];
	}

	private static OperateTypeEnum convertOperateLogType(RequestMethod requestMethod) {
	if (requestMethod == null) {
	return null;
	}
	switch (requestMethod) {
	case GET:
	return OperateTypeEnum.GET;
	case POST:
	return OperateTypeEnum.CREATE;
	case PUT:
	return OperateTypeEnum.UPDATE;
	case DELETE:
	return OperateTypeEnum.DELETE;
	default:
	return OperateTypeEnum.OTHER;
	}
	}

	private static RequestMethod[] obtainRequestMethod(ProceedingJoinPoint joinPoint) {
	RequestMapping requestMapping = AnnotationUtils.getAnnotation( // 使用 Spring 的工具类，可以处理 @RequestMapping 别名注解
	((MethodSignature) joinPoint.getSignature()).getMethod(), RequestMapping.class);
	return requestMapping != null ? requestMapping.method() : new RequestMethod[]{};
	}

	@SuppressWarnings("SameParameterValue")
	private static <T extends Annotation> T getMethodAnnotation(ProceedingJoinPoint joinPoint, Class<T> annotationClass) {
	return ((MethodSignature) joinPoint.getSignature()).getMethod().getAnnotation(annotationClass);
	}

	@SuppressWarnings("SameParameterValue")
	private static <T extends Annotation> T getClassAnnotation(ProceedingJoinPoint joinPoint, Class<T> annotationClass) {
	return ((MethodSignature) joinPoint.getSignature()).getMethod().getDeclaringClass().getAnnotation(annotationClass);
	}

	private static String obtainMethodArgs(ProceedingJoinPoint joinPoint) {
	// TODO 提升：参数脱敏和忽略
	MethodSignature methodSignature = (MethodSignature) joinPoint.getSignature();
	String[] argNames = methodSignature.getParameterNames();
	Object[] argValues = joinPoint.getArgs();
	// 拼接参数
	Map<String, Object> args = Maps.newHashMapWithExpectedSize(argValues.length);
	for (int i = 0; i < argNames.length; i++) {
	String argName = argNames[i];
	Object argValue = argValues[i];
	// 被忽略时，标记为 ignore 字符串，避免和 null 混在一起
	args.put(argName, !isIgnoreArgs(argValue) ? argValue : "[ignore]");
	}
	return JsonUtils.toJsonString(args);
	}

	private static String obtainResultData(Object result) {
	// TODO 提升：结果脱敏和忽略
	if (result instanceof CommonResult) {
	result = ((CommonResult<?>) result).getData();
	}
	return JsonUtils.toJsonString(result);
	}

	private static boolean isIgnoreArgs(Object object) {
	Class<?> clazz = object.getClass();
	// 处理数组的情况
	if (clazz.isArray()) {
	return IntStream.range(0, Array.getLength(object))
	.anyMatch(index -> isIgnoreArgs(Array.get(object, index)));
	}
	// 递归，处理数组、Collection、Map 的情况
	if (Collection.class.isAssignableFrom(clazz)) {
	return ((Collection<?>) object).stream()
	.anyMatch((Predicate<Object>) OperateLogAspect::isIgnoreArgs);
	}
	if (Map.class.isAssignableFrom(clazz)) {
	return isIgnoreArgs(((Map<?, ?>) object).values());
	}
	// obj
	return object instanceof MultipartFile
	\|\| object instanceof HttpServletRequest
	\|\| object instanceof HttpServletResponse
	\|\| object instanceof BindingResult;
	}

	}

创建自动配置类

	package com.tz.scaffold.framework.operatelog.config;

	import com.tz.scaffold.framework.operatelog.core.aop.OperateLogAspect;
	import com.tz.scaffold.framework.operatelog.core.service.OperateLogFrameworkService;
	import com.tz.scaffold.framework.operatelog.core.service.OperateLogFrameworkServiceImpl;
	import com.tz.scaffold.module.system.api.logger.OperateLogApi;
	import org.springframework.boot.autoconfigure.AutoConfiguration;
	import org.springframework.context.annotation.Bean;

	/**
	* <p> Project: scaffold - ScaffoldOperateLogAutoConfiguration </p>
	*
	* 操作日志配置类
	* @author Tz
	* @date 2024/01/09 23:45
	* @version 1.0.0
	* @since 1.0.0
	*/
	@AutoConfiguration
	public class ScaffoldOperateLogAutoConfiguration {

	@Bean
	public OperateLogAspect operateLogAspect() {
	return new OperateLogAspect();
	}

	@Bean
	public OperateLogFrameworkService operateLogFrameworkService(OperateLogApi operateLogApi) {
	return new OperateLogFrameworkServiceImpl(operateLogApi);
	}

	}

封装成组件，下次只需要引入这个 jar 包，直接在方法上加上对应的注解即可记录操作日志

# 登陆日志

登陆日志记录：记录了【哪个用户】在【什么时间】登陆或登出了系统，可以在【系统管理 -> 审计日志 -> 登陆日志】菜单中看到对应的列表。如图显示：

登陆日志的在系统模块下实现，每次用户登陆的时候就会记录

代码：

	private void createLoginLog(Long userId, String username,
	LoginLogTypeEnum logTypeEnum, LoginResultEnum loginResult) {
	// 插入登录日志
	LoginLogCreateReqDTO reqDTO = new LoginLogCreateReqDTO();
	reqDTO.setLogType(logTypeEnum.getType());
	reqDTO.setTraceId(TracerUtils.getTraceId());
	reqDTO.setUserId(userId);
	reqDTO.setUserType(getUserType().getValue());
	reqDTO.setUsername(username);
	reqDTO.setUserAgent(ServletUtils.getUserAgent());
	reqDTO.setUserIp(ServletUtils.getClientIP());
	reqDTO.setResult(loginResult.getResult());
	loginLogService.createLoginLog(reqDTO);
	// 更新最后登录时间
	if (userId != null && Objects.equals(LoginResultEnum.SUCCESS.getResult(), loginResult.getResult())) {
	userService.updateUserLogin(userId, ServletUtils.getClientIP());
	}
	}

# API 访问日志

# 数据库记录

api 访问日志，记录每次 api 调用的信息，包括：HTTP 请求、用户、开始时间、时长等等信息。

在【基础设施 -> API 日志 -> 访问日志】菜单，可以看到对应的情况。

# 访问日志记录的实现

通过过滤器实现，过滤 RESTful API 请求，异步记录日志（这样不会造成接口的堵塞）

添加一个 ApiAccessLogFilter 过滤器，代码：

	/**
	* <p> Project: scaffold - ApiAccessLogFilter </p>
	*
	* API 访问日志 Filter
	* @author Tz
	* @date 2024/01/09 23:45
	* @version 1.0.0
	* @since 1.0.0
	*/
	@Slf4j
	public class ApiAccessLogFilter extends ApiRequestFilter {

	private final String applicationName;

	private final ApiAccessLogFrameworkService apiAccessLogFrameworkService;

	public ApiAccessLogFilter(WebProperties webProperties, String applicationName, ApiAccessLogFrameworkService apiAccessLogFrameworkService) {
	super(webProperties);
	this.applicationName = applicationName;
	this.apiAccessLogFrameworkService = apiAccessLogFrameworkService;
	}

	@Override
	protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain)
	throws ServletException, IOException {
	// 获得开始时间
	LocalDateTime beginTime = LocalDateTime.now();
	// 提前获得参数，避免 XssFilter 过滤处理
	Map<String, String> queryString = ServletUtils.getParamMap(request);
	String requestBody = ServletUtils.isJsonRequest(request) ? ServletUtils.getBody(request) : null;

	try {
	// 继续过滤器
	filterChain.doFilter(request, response);
	// 正常执行，记录日志
	createApiAccessLog(request, beginTime, queryString, requestBody, null);
	} catch (Exception ex) {
	// 异常执行，记录日志
	createApiAccessLog(request, beginTime, queryString, requestBody, ex);
	throw ex;
	}
	}

	private void createApiAccessLog(HttpServletRequest request, LocalDateTime beginTime,
	Map<String, String> queryString, String requestBody, Exception ex) {
	ApiAccessLog accessLog = new ApiAccessLog();
	try {
	this.buildApiAccessLogDTO(accessLog, request, beginTime, queryString, requestBody, ex);
	apiAccessLogFrameworkService.createApiAccessLog(accessLog);
	} catch (Throwable th) {
	log.error("[createApiAccessLog][url({}) log({}) 发生异常]", request.getRequestURI(), toJsonString(accessLog), th);
	}
	}

	private void buildApiAccessLogDTO(ApiAccessLog accessLog, HttpServletRequest request, LocalDateTime beginTime,
	Map<String, String> queryString, String requestBody, Exception ex) {
	// 处理用户信息
	accessLog.setUserId(WebFrameworkUtils.getLoginUserId(request));
	accessLog.setUserType(WebFrameworkUtils.getLoginUserType(request));
	// 设置访问结果
	CommonResult<?> result = WebFrameworkUtils.getCommonResult(request);
	if (result != null) {
	accessLog.setResultCode(result.getCode());
	accessLog.setResultMsg(result.getMsg());
	} else if (ex != null) {
	accessLog.setResultCode(GlobalErrorCodeConstants.INTERNAL_SERVER_ERROR.getCode());
	accessLog.setResultMsg(ExceptionUtil.getRootCauseMessage(ex));
	} else {
	accessLog.setResultCode(0);
	accessLog.setResultMsg("");
	}
	// 设置其它字段
	accessLog.setTraceId(TracerUtils.getTraceId());
	accessLog.setApplicationName(applicationName);
	accessLog.setRequestUrl(request.getRequestURI());
	Map<String, Object> requestParams = MapUtil.<String, Object>builder().put("query", queryString).put("body", requestBody).build();
	accessLog.setRequestParams(toJsonString(requestParams));
	accessLog.setRequestMethod(request.getMethod());
	accessLog.setUserAgent(ServletUtils.getUserAgent(request));
	accessLog.setUserIp(ServletUtils.getClientIP(request));
	// 持续时间
	accessLog.setBeginTime(beginTime);
	accessLog.setEndTime(LocalDateTime.now());
	accessLog.setDuration((int) LocalDateTimeUtil.between(accessLog.getBeginTime(), accessLog.getEndTime(), ChronoUnit.MILLIS));
	}

	}

日志存储的实现

调用 infra 模块的接口来实现保存日志

	package com.tz.scaffold.framework.apilog.core.service;

	/**
	* <p> Project: scaffold - ApiAccessLogFrameworkService </p>
	*
	* API 访问日志 Framework Service 接口
	* @author Tz
	* @date 2024/01/09 23:45
	* @version 1.0.0
	* @since 1.0.0
	*/
	public interface ApiAccessLogFrameworkService {

	/**
	* 创建 API 访问日志
	*
	* @param apiAccessLog API 访问日志
	*/
	void createApiAccessLog(ApiAccessLog apiAccessLog);
	}

实现类实际就是调用的 infra 的模块的接口：

	package com.tz.scaffold.framework.apilog.core.service;

	import cn.hutool.core.bean.BeanUtil;
	import com.tz.scaffold.module.infra.api.logger.ApiAccessLogApi;
	import com.tz.scaffold.module.infra.api.logger.dto.ApiAccessLogCreateReqDTO;
	import lombok.RequiredArgsConstructor;
	import org.springframework.scheduling.annotation.Async;

	/**
	* <p> Project: scaffold - ApiAccessLogFrameworkServiceImpl </p>
	*
	* API 访问日志 Framework Service 实现类
	* <p>
	* 基于 {@link ApiAccessLogApi} 服务，记录访问日志
	* @author Tz
	* @date 2024/01/09 23:45
	* @version 1.0.0
	* @since 1.0.0
	*/
	@RequiredArgsConstructor
	public class ApiAccessLogFrameworkServiceImpl implements ApiAccessLogFrameworkService {

	private final ApiAccessLogApi apiAccessLogApi;

	@Override
	@Async
	public void createApiAccessLog(ApiAccessLog apiAccessLog) {
	ApiAccessLogCreateReqDTO reqDTO = BeanUtil.copyProperties(apiAccessLog, ApiAccessLogCreateReqDTO.class);
	apiAccessLogApi.createApiAccessLog(reqDTO);
	}

	}

# API 错误日志

Api 错误日志，记录每次 Api 调用接口或异常的记录，包括 HTTP 请求、用户、异常的堆栈信息。

在【基础设施 -> API 日志 -> 错误日志】菜单，可以看到对应的情况。

# 错误日志记录实现

通过 GlobalExceptionHandler 拦截每次 RESTful API 异常进行异步记录

代码：

	/**
	* <p> Project: scaffold - GlobalExceptionHandler </p>
	*
	* 全局异常处理器，将 Exception 翻译成 CommonResult + 对应的异常编号
	* @author Tz
	* @date 2024/01/09 23:45
	* @version 1.0.0
	* @since 1.0.0
	*/
	@RestControllerAdvice
	@AllArgsConstructor
	@Slf4j
	public class GlobalExceptionHandler {

	private final String applicationName;

	private final ApiErrorLogFrameworkService apiErrorLogFrameworkService;

	/**
	* 处理所有异常，主要是提供给 Filter 使用
	* 因为 Filter 不走 SpringMVC 的流程，但是我们又需要兜底处理异常，所以这里提供一个全量的异常处理过程，保持逻辑统一。
	*
	* @param request 请求
	* @param ex 异常
	* @return 通用返回
	*/
	public CommonResult<?> allExceptionHandler(HttpServletRequest request, Throwable ex) {
	if (ex instanceof MissingServletRequestParameterException) {
	return missingServletRequestParameterExceptionHandler((MissingServletRequestParameterException) ex);
	}
	if (ex instanceof MethodArgumentTypeMismatchException) {
	return methodArgumentTypeMismatchExceptionHandler((MethodArgumentTypeMismatchException) ex);
	}
	if (ex instanceof MethodArgumentNotValidException) {
	return methodArgumentNotValidExceptionExceptionHandler((MethodArgumentNotValidException) ex);
	}
	if (ex instanceof BindException) {
	return bindExceptionHandler((BindException) ex);
	}
	if (ex instanceof ConstraintViolationException) {
	return constraintViolationExceptionHandler((ConstraintViolationException) ex);
	}
	if (ex instanceof ValidationException) {
	return validationException((ValidationException) ex);
	}
	if (ex instanceof NoHandlerFoundException) {
	return noHandlerFoundExceptionHandler(request, (NoHandlerFoundException) ex);
	}
	if (ex instanceof HttpRequestMethodNotSupportedException) {
	return httpRequestMethodNotSupportedExceptionHandler((HttpRequestMethodNotSupportedException) ex);
	}
	if (ex instanceof ServiceException) {
	return serviceExceptionHandler((ServiceException) ex);
	}
	if (ex instanceof AccessDeniedException) {
	return accessDeniedExceptionHandler(request, (AccessDeniedException) ex);
	}
	return defaultExceptionHandler(request, ex);
	}

	/**
	* 处理 SpringMVC 请求参数缺失
	*
	* 例如说，接口上设置了 @RequestParam ("xx") 参数，结果并未传递 xx 参数
	*/
	@ExceptionHandler(value = MissingServletRequestParameterException.class)
	public CommonResult<?> missingServletRequestParameterExceptionHandler(MissingServletRequestParameterException ex) {
	log.warn("[missingServletRequestParameterExceptionHandler]", ex);
	return CommonResult.error(BAD_REQUEST.getCode(), String.format("请求参数缺失:%s", ex.getParameterName()));
	}

	/**
	* 处理 SpringMVC 请求参数类型错误
	*
	* 例如说，接口上设置了 @RequestParam ("xx") 参数为 Integer，结果传递 xx 参数类型为 String
	*/
	@ExceptionHandler(MethodArgumentTypeMismatchException.class)
	public CommonResult<?> methodArgumentTypeMismatchExceptionHandler(MethodArgumentTypeMismatchException ex) {
	log.warn("[missingServletRequestParameterExceptionHandler]", ex);
	return CommonResult.error(BAD_REQUEST.getCode(), String.format("请求参数类型错误:%s", ex.getMessage()));
	}

	/**
	* 处理 SpringMVC 参数校验不正确
	*/
	@ExceptionHandler(MethodArgumentNotValidException.class)
	public CommonResult<?> methodArgumentNotValidExceptionExceptionHandler(MethodArgumentNotValidException ex) {
	log.warn("[methodArgumentNotValidExceptionExceptionHandler]", ex);
	FieldError fieldError = ex.getBindingResult().getFieldError();
	// 断言，避免告警
	assert fieldError != null;
	return CommonResult.error(BAD_REQUEST.getCode(), String.format("请求参数不正确:%s", fieldError.getDefaultMessage()));
	}

	/**
	* 处理 SpringMVC 参数绑定不正确，本质上也是通过 Validator 校验
	*/
	@ExceptionHandler(BindException.class)
	public CommonResult<?> bindExceptionHandler(BindException ex) {
	log.warn("[handleBindException]", ex);
	FieldError fieldError = ex.getFieldError();
	// 断言，避免告警
	assert fieldError != null;
	return CommonResult.error(BAD_REQUEST.getCode(), String.format("请求参数不正确:%s", fieldError.getDefaultMessage()));
	}

	/**
	* 处理 Validator 校验不通过产生的异常
	*/
	@ExceptionHandler(value = ConstraintViolationException.class)
	public CommonResult<?> constraintViolationExceptionHandler(ConstraintViolationException ex) {
	log.warn("[constraintViolationExceptionHandler]", ex);
	ConstraintViolation<?> constraintViolation = ex.getConstraintViolations().iterator().next();
	return CommonResult.error(BAD_REQUEST.getCode(), String.format("请求参数不正确:%s", constraintViolation.getMessage()));
	}

	/**
	* 处理 Dubbo Consumer 本地参数校验时，抛出的 ValidationException 异常
	*/
	@ExceptionHandler(value = ValidationException.class)
	public CommonResult<?> validationException(ValidationException ex) {
	log.warn("[constraintViolationExceptionHandler]", ex);
	// 无法拼接明细的错误信息，因为 Dubbo Consumer 抛出 ValidationException 异常时，是直接的字符串信息，且人类不可读
	return CommonResult.error(BAD_REQUEST);
	}

	/**
	* 处理 SpringMVC 请求地址不存在
	*
	* 注意，它需要设置如下两个配置项：
	* 1. spring.mvc.throw-exception-if-no-handler-found 为 true
	* 2. spring.mvc.static-path-pattern 为 /statics/**
	*/
	@ExceptionHandler(NoHandlerFoundException.class)
	public CommonResult<?> noHandlerFoundExceptionHandler(HttpServletRequest req, NoHandlerFoundException ex) {
	log.warn("[noHandlerFoundExceptionHandler]", ex);
	return CommonResult.error(NOT_FOUND.getCode(), String.format("请求地址不存在:%s", ex.getRequestURL()));
	}

	/**
	* 处理 SpringMVC 请求方法不正确
	*
	* 例如说，A 接口的方法为 GET 方式，结果请求方法为 POST 方式，导致不匹配
	*/
	@ExceptionHandler(HttpRequestMethodNotSupportedException.class)
	public CommonResult<?> httpRequestMethodNotSupportedExceptionHandler(HttpRequestMethodNotSupportedException ex) {
	log.warn("[httpRequestMethodNotSupportedExceptionHandler]", ex);
	return CommonResult.error(METHOD_NOT_ALLOWED.getCode(), String.format("请求方法不正确:%s", ex.getMessage()));
	}

	/**
	* 处理 Resilience4j 限流抛出的异常
	*/
	public CommonResult<?> requestNotPermittedExceptionHandler(HttpServletRequest req, Throwable ex) {
	log.warn("[requestNotPermittedExceptionHandler][url({}) 访问过于频繁]", req.getRequestURL(), ex);
	return CommonResult.error(TOO_MANY_REQUESTS);
	}

	/**
	* 处理 Spring Security 权限不足的异常
	*
	* 来源是，使用 @PreAuthorize 注解，AOP 进行权限拦截
	*/
	@ExceptionHandler(value = AccessDeniedException.class)
	public CommonResult<?> accessDeniedExceptionHandler(HttpServletRequest req, AccessDeniedException ex) {
	log.warn("[accessDeniedExceptionHandler][userId({}) 无法访问 url({})]", WebFrameworkUtils.getLoginUserId(req),
	req.getRequestURL(), ex);
	return CommonResult.error(FORBIDDEN);
	}

	/**
	* 处理业务异常 ServiceException
	*
	* 例如说，商品库存不足，用户手机号已存在。
	*/
	@ExceptionHandler(value = ServiceException.class)
	public CommonResult<?> serviceExceptionHandler(ServiceException ex) {
	log.info("[serviceExceptionHandler]", ex);
	return CommonResult.error(ex.getCode(), ex.getMessage());
	}

	/**
	* 处理系统异常，兜底处理所有的一切
	*/
	@ExceptionHandler(value = Exception.class)
	public CommonResult<?> defaultExceptionHandler(HttpServletRequest req, Throwable ex) {
	// 情况一：处理表不存在的异常
	CommonResult<?> tableNotExistsResult = handleTableNotExists(ex);
	if (tableNotExistsResult != null) {
	return tableNotExistsResult;
	}

	// 情况二：部分特殊的库的处理
	if (Objects.equals("io.github.resilience4j.ratelimiter.RequestNotPermitted", ex.getClass().getName())) {
	return requestNotPermittedExceptionHandler(req, ex);
	}

	// 情况三：处理异常
	log.error("[defaultExceptionHandler]", ex);
	// 插入异常日志
	this.createExceptionLog(req, ex);
	// 返回 ERROR CommonResult
	return CommonResult.error(INTERNAL_SERVER_ERROR.getCode(), INTERNAL_SERVER_ERROR.getMsg());
	}

	private void createExceptionLog(HttpServletRequest req, Throwable e) {
	// 插入错误日志
	ApiErrorLog errorLog = new ApiErrorLog();
	try {
	// 初始化 errorLog
	initExceptionLog(errorLog, req, e);
	// 执行插入 errorLog
	apiErrorLogFrameworkService.createApiErrorLog(errorLog);
	} catch (Throwable th) {
	log.error("[createExceptionLog][url({}) log({}) 发生异常]", req.getRequestURI(), JsonUtils.toJsonString(errorLog), th);
	}
	}

	private void initExceptionLog(ApiErrorLog errorLog, HttpServletRequest request, Throwable e) {
	// 处理用户信息
	errorLog.setUserId(WebFrameworkUtils.getLoginUserId(request));
	errorLog.setUserType(WebFrameworkUtils.getLoginUserType(request));
	// 设置异常字段
	errorLog.setExceptionName(e.getClass().getName());
	errorLog.setExceptionMessage(ExceptionUtil.getMessage(e));
	errorLog.setExceptionRootCauseMessage(ExceptionUtil.getRootCauseMessage(e));
	errorLog.setExceptionStackTrace(ExceptionUtils.getStackTrace(e));
	StackTraceElement[] stackTraceElements = e.getStackTrace();
	Assert.notEmpty(stackTraceElements, "异常 stackTraceElements 不能为空");
	StackTraceElement stackTraceElement = stackTraceElements[0];
	errorLog.setExceptionClassName(stackTraceElement.getClassName());
	errorLog.setExceptionFileName(stackTraceElement.getFileName());
	errorLog.setExceptionMethodName(stackTraceElement.getMethodName());
	errorLog.setExceptionLineNumber(stackTraceElement.getLineNumber());
	// 设置其它字段
	errorLog.setTraceId(TracerUtils.getTraceId());
	errorLog.setApplicationName(applicationName);
	errorLog.setRequestUrl(request.getRequestURI());
	Map<String, Object> requestParams = MapUtil.<String, Object>builder()
	.put("query", ServletUtils.getParamMap(request))
	.put("body", ServletUtils.getBody(request)).build();
	errorLog.setRequestParams(JsonUtils.toJsonString(requestParams));
	errorLog.setRequestMethod(request.getMethod());
	errorLog.setUserAgent(ServletUtils.getUserAgent(request));
	errorLog.setUserIp(ServletUtils.getClientIP(request));
	errorLog.setExceptionTime(LocalDateTime.now());
	}

	/**
	* 处理 Table 不存在的异常情况
	*
	* @param ex 异常
	* @return 如果是 Table 不存在的异常，则返回对应的 CommonResult
	*/
	private CommonResult<?> handleTableNotExists(Throwable ex) {
	String message = ExceptionUtil.getRootCauseMessage(ex);
	if (!message.contains("doesn't exist")) {
	return null;
	}
	// 1. 数据报表
	if (message.contains("report_")) {
	log.error("[报表模块 scaffold-module-report - 表结构未导入][参考 https://www.tzzfj.cn/ 开启]");
	return CommonResult.error(NOT_IMPLEMENTED.getCode(),
	"[报表模块 scaffold-module-report - 表结构未导入][参考 https://www.tzzfj.cn/ 开启]");
	}
	// 2. 工作流
	if (message.contains("bpm_")) {
	log.error("[工作流模块 scaffold-module-bpm - 表结构未导入][参考 https://www.tzzfj.cn/ 开启]");
	return CommonResult.error(NOT_IMPLEMENTED.getCode(),
	"[工作流模块 scaffold-module-bpm - 表结构未导入][参考 https://www.tzzfj.cn/ 开启]");
	}
	// 3. 微信公众号
	if (message.contains("mp_")) {
	log.error("[微信公众号 scaffold-module-mp - 表结构未导入][参考 https://www.tzzfj.cn/ 开启]");
	return CommonResult.error(NOT_IMPLEMENTED.getCode(),
	"[微信公众号 scaffold-module-mp - 表结构未导入][参考 https://www.tzzfj.cn/ 开启]");
	}
	// 4. 商城系统
	if (StrUtil.containsAny(message, "product_", "promotion_", "trade_")) {
	log.error("[商城系统 scaffold-module-mall - 已禁用][参考 https://www.tzzfj.cn/mall/ 开启]");
	return CommonResult.error(NOT_IMPLEMENTED.getCode(),
	"[商城系统 scaffold-module-mall - 已禁用][参考 https://www.tzzfj.cn/ 开启]");
	}
	// 5. 支付平台
	if (message.contains("pay_")) {
	log.error("[支付模块 scaffold-module-pay - 表结构未导入][参考 https://www.tzzfj.cn/ 开启]");
	return CommonResult.error(NOT_IMPLEMENTED.getCode(),
	"[支付模块 scaffold-module-pay - 表结构未导入][参考 https://www.tzzfj.cn/ 开启]");
	}
	return null;
	}

	}

个人项目骨架项目
